Vous êtes ici : Reference > Dialog Boxes > T > Tablature Staff Attributes dialog box

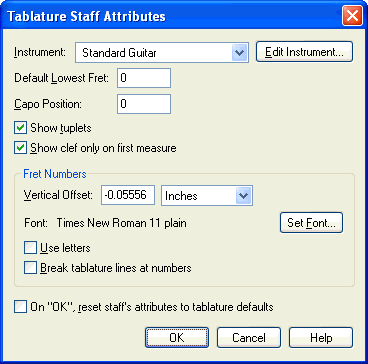

Tablature Staff Attributes dialog box

How to get there

Click the Staff Tool $image\Staff_Tool.gif$ , and double-click any staff. From the Notation Style drop-down list choose Tablature, then click Select.

What it does

Use this dialog box to make custom settings for a TAB staff including string tuning. You can use Finale to create tablature notation (for guitar or banjo, for example), where small numbers appear on a special "staff" to indicate fret numbers.

Instrument: Standard Guitar • Lute; Edit Instrument. Select the type of tablature staff you want to create from this drop-down list. Click the Edit Instrument button to define a dif-ferent fretboard instrument. See Fretboard Instrument Definition.
Default Lowest Fret. Type in this text box to indicate the lowest fret to use in the staff by default.
Capo Position. Type a fret number in this text box to indicate the location of a capo.
Show Tuplets. Check this box to display tuplet definitions in the TAB staff.
Show Clef Only On First Measure. Check this box to display the TAB clef on the first mea-sure only, and not at the beginning of subsequent systems.
Vertical Offset. Use this field to specify the vertical offset for the positioning of fret numbers on the strings of the staff. Click the drop-down list to specify a different measurement unit.
Font; Set Font. Indicates the current fret number font. To change the font, size and style, click the Set Font button. The Font dialog box appears. See Font Dialog box for more infor-mation.
Use Letters. Check this box to use fret letters in the TAB staff instead of numbers.
Break Tablature Lines At Numbers. Select this option to have space between the tablature lines and the tablature numbers.
On "OK", Reset Staff’s Attributes To Tablature Defaults. Check this box to revert to Finale’s default TAB staff settings.
OK • Cancel. Click OK (or press enter) to confirm, or Cancel to discard, your tablature set-tings. You return to the Staff Attributes dialog box. If you clicked OK, Tablature will be selected in the Notation Style drop-down list.
